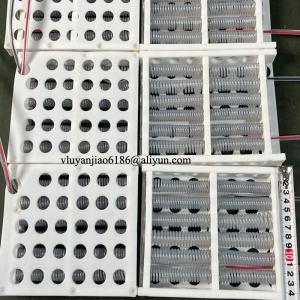

220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

Brand Name : Surplus

Model Number : PTFE immersion Heater 16

Certification : ISO9001

Place of Origin : China

MOQ : 1 PCS

Price : Contact Us

Payment Terms : TT, Paypal, Western Union

Supply Ability : 50 PC/Month

Delivery Time : 10-15 working days

Packaging Details : Wooden Case or Carton Box

Name : 220V 1P 1KW Board Shaped 17015025MM PTFE Immersion Electric Heater For NH4OHH2O2H2O (SC-1)

Supply voltage (V/Phase) : 110V-480V

Power(KW) : 1KW-6KW

Type of temperature control : Overheat protection

Application : Acid Heating And Corrosive Chemical Heating

Frame Material : PTFE

Inside material : SUS

Cable length : 2 meters/3meters/others

Contact Now

220V 1P 1KW Board Shaped 170x150x25MM PTFE Immersion Electric Heater For NH4OHH2O2H2O (SC-1)

PRODUCT DESCRIPTION

Excellent chemical resistance to aggressive acids.

  • FEATURES

    • PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).

    • Low watt density design 10 watts/square inch (1.5w/cm²).

    • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.

    • Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).

    • Certification: cULus. CE certified and CSA

  • SPECIFICATIONS

    • 3000 - 18000 watts

    • 120 to 600 volts (600 volts on 12,000 watts or lower only)

  • OPTIONS AVAILABLE (CONSULT FACTORY)

    • Resettable thermal protectors

    • Polypropylene guards (sold separately)

    • Custom configurations and lengths

    • Custom wire and conduit lengths

FLAT ASSEMBLY TYPE – PTFE Immersion Heater

  • Universal ‘all plastic’ model

  • Ideal for important powers (from 6kW)

  • Up to 48 kW

  • Ideal for large tanks

Universal model for all types of installation such as side of tank, bottom of tank with feet or on slidings.
Rigid structure ideal for important powers.

Assembly type F
On a plastic rod frame PVDF or PP.
Standard configuration : heating cable coated Teflon® FEP and PP or PVDF rod frame.
For use on the side or at the bottom of the tank.

Others Applications

Flammable Solvent Heating
Products designed to safely heat IPA and low flash-point solvents, meeting the most stringent cleanliness requirements to support next-generation semiconductor node technologies.

Products For Flammable Solvent Heating
PFA Inline Chemical Heater220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

PTFE Inline Chemical Heater

220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

Inline Chemical Heater

220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

Electrochemical Deposition

Electrochemical Deposition is a cost-effective process using oxidation and reduction to adhere metal to a surface using electricity. The process is also sometimes referred to as Electro-Plating. Surplus products deliver full power supply output performance, high efficiency, high-speed DC output, connectivity, reliability, and ETL certification.

Electrochemical Deposition

Products(2)
HXSL SERIES
Custom, low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.
220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

HXRL SERIES
Low watt density, fluoropolymer (PTFE) sleeved bottom heater with flexible riser. Single phase. 1000-6000 watts, 120-600 volts.

220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater

 HXO SERIES
Low watt density, O shaped fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-9000 watts, 120-600 volts.
220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater
HXF SERIES
Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.
220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater		 HX SERIES
Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.
220V 1P 1KW Board Shaped PTFE Immersion Heaters , Electric Immersion Tank Heater
